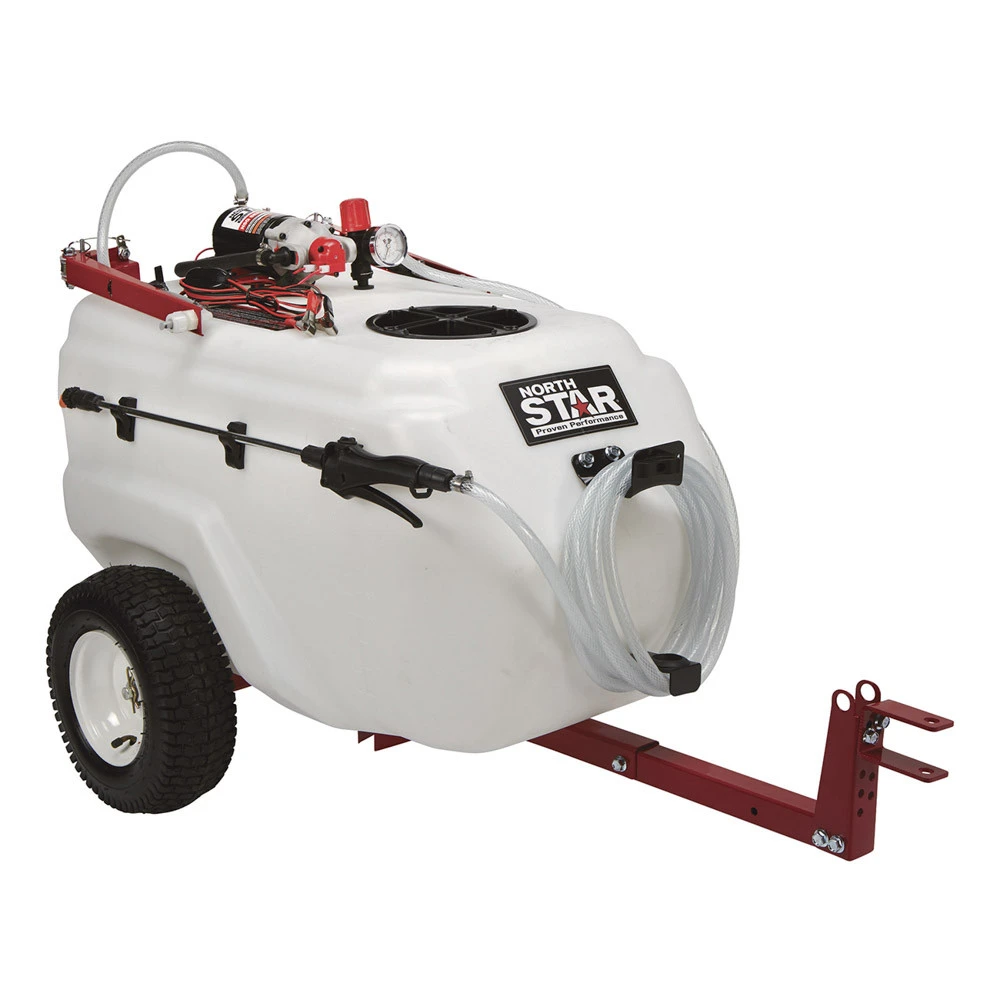

12V Tow Behind Sprayer – 117L

NorthStar 117 Litre

Tow-Behind Sprayer

The versatile, high-end NorthStar® Tow-Behind Sprayer gives you the ability to do both precision and wide-coverage spraying. Equipped with a commercial-grade 12V NorthStar® NSQ SeriesTM pump, it provides easier priming, exceptional durability and superior resistance to harsh environments and corrosive chemicals.

• Proprietary tank design features extra-thick walls made with special chemical – and UV-resistant polymer
• In-line fuse protection
• Compatible with Roundup® agricultural herbicide
• Control system pressure and fluid agitation with regulator and pressure gauge
• Spring-loaded, breakaway boom arms fold away for compact storage
• 190mm (7.5in.) diameter tank lid for easy fills
• Rugged powder-coated steel cart with large 300mm (12in.) pneumatic wheels
• Designed to be shipping friendly – more per container

Specifications

Pump:
NorthStar 12V 8.3 LPM (2.2 GPM) – 19mm (3/4in.) QC

Maximum Performance:
8.3 LPM (2.2 GPM) at open flow – 4.8 BAR (70 PSI) max.

Tank & Trailer:
Capacity: 117 liters (31 gallons)
Weight: 31.7 kg (60 lbs)
Dimensions: 1186 x 1048 x 705 mm (46.7×41.25×27.75 in.)

Hose:
9.5mm x 4.57m (3/8in. x 15-ft.)

Spray Pattern:
Cone, Stream and Broadcast

Spray Distance:
Gun: 9.14m (30-ft.) long, 5.79m (19-ft.) high
Broadcast: 3.05m (10-ft.) wide

Approvals:
CE compliant
